keyword: 3W-9805301B1-5(355*500*563mm)

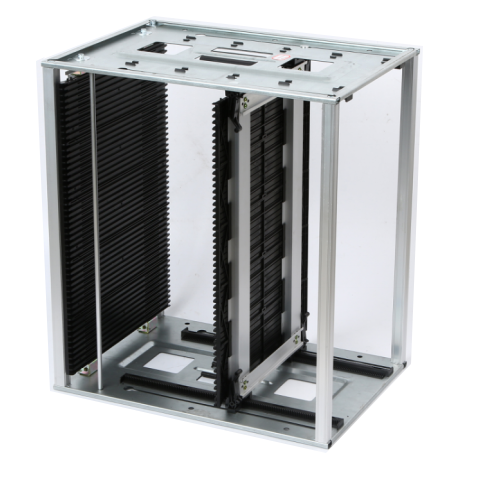

Product name Anti-static collection rack
Product model 9805301B1-5
Adjustment method Wrench adjustment
Specification parameters ●External dimensions: 355*500*563mm
●Base position: A: 34mm; B: 34mm
●Adjustable width: 90-430mm
●Groove depth: 3.5mm
●Slot width: 5mm
●Pitch: 10 mm
●Number of slots: 50
●Weight: 6.94Kg
●Carrier: 20kg
Product description ◆Baffle mechanism: spring lever
◆Static index: 10e4-10e8
◆Side board structure: 5 pieces of puzzle
◆Bottom plate material: galvanized bottom plate
Temperature resistance options 口100°C 口120°C 口150°C (can enter 120°C oven)
Optional accessories □Metal folder
stacking screw
□Layer number label
□Anti-sit tag
□Turnover cart (3W-9806101 series)

*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board
