产品描述
| Product name | Anti-static collection rack | |
| Product model | 9805301B1-3 | |
| Adjustment method | Wrench adjustment | |
| Specification parameters | ●External dimensions: | 355*320*563mm |
| ●Base position: | A: 31mm; B: 34mm | |
| ●Adjustable width: | 40-250mm | |
| ●Groove depth: | 3.5mm | |
| ●Slot width: | 5mm | |
| ●Pitch: | 10mm | |
| ●Number of slots: | 30 | |
| ●Weight: | 4.52Kg | |
| ●Carrier: | 12kg | |
| Product description | ◆Baffle mechanism: spring lever | |
| ◆Static index: 10e4-10e8 | ||
| ◆Side board structure: 3 pieces of puzzle | ||
| ◆Bottom plate material: plastic bottom plate | ||
| Temperature resistance options | Port 100C port 120°C port 150°C (can enter 120C oven) | |
| Optional accessories | □Metal folder | |
| stacking screw | ||
| □Layer number label | ||
| □Anti-sit tag | ||
| □Turnover cart (3W-9806101 series) | ||
*Temperature resistance refers to the maximum temperature that the collection rack can withstand the PCB board

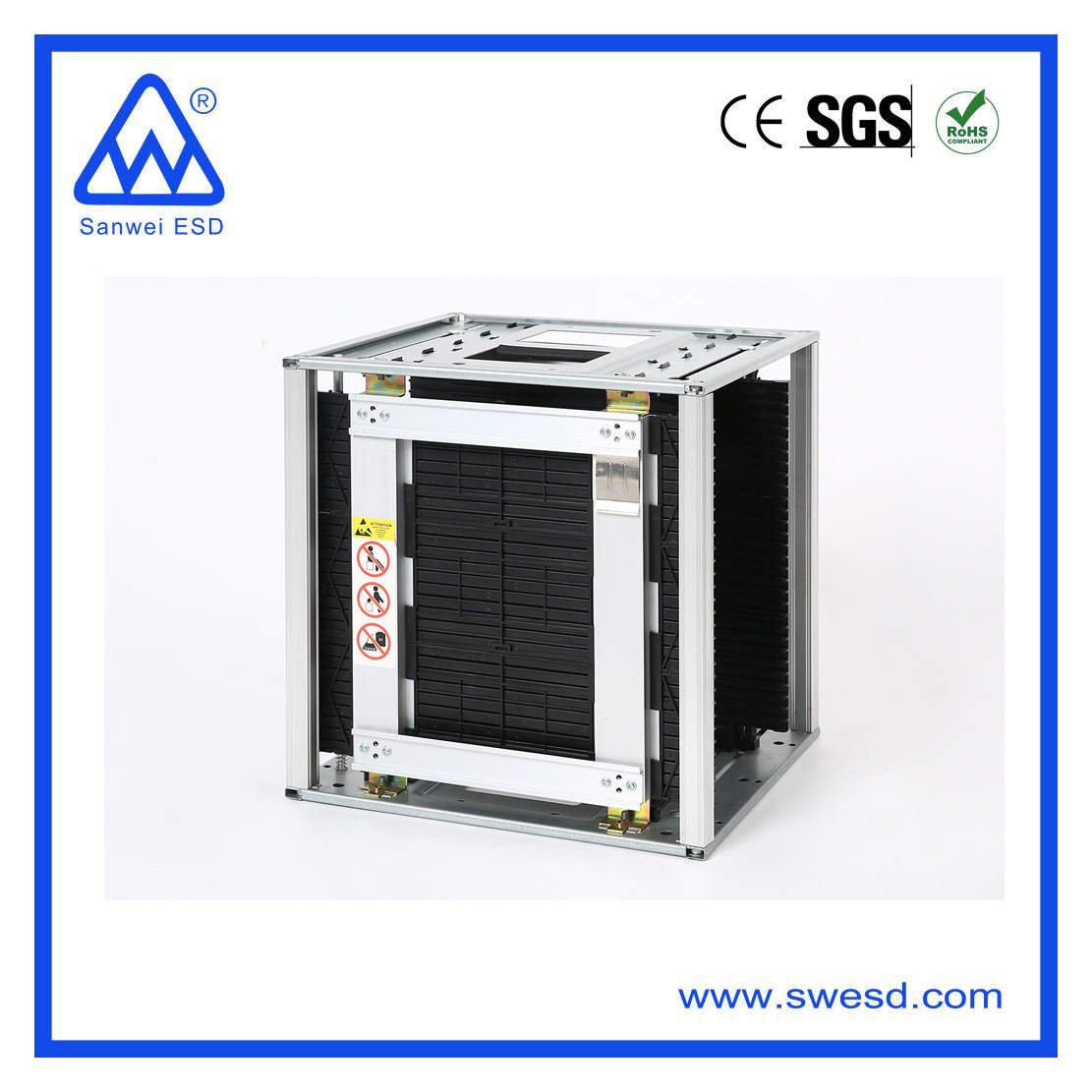

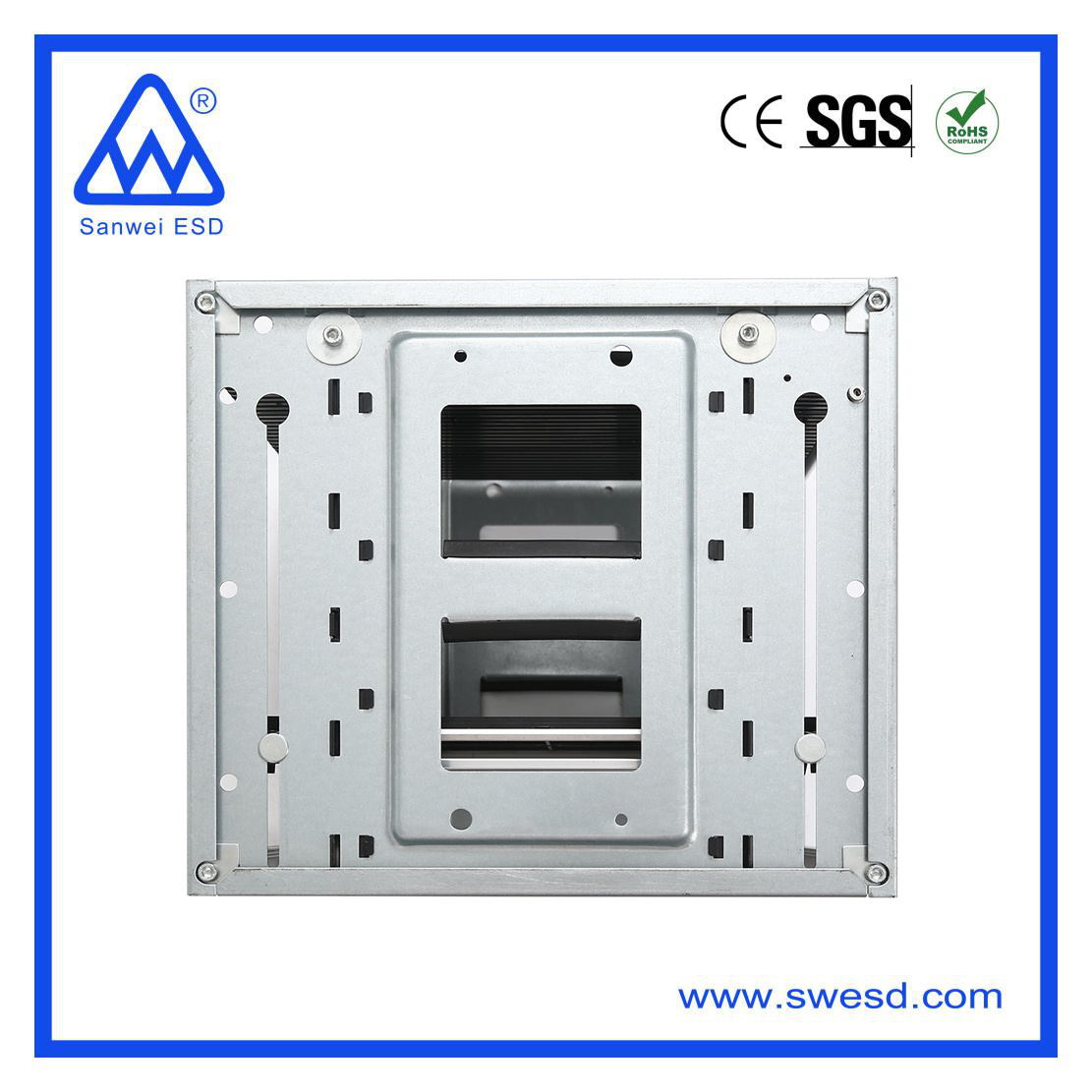

3W-9805301B1-3 （Anti-static collection rack）
